| Guying Software |
|---|

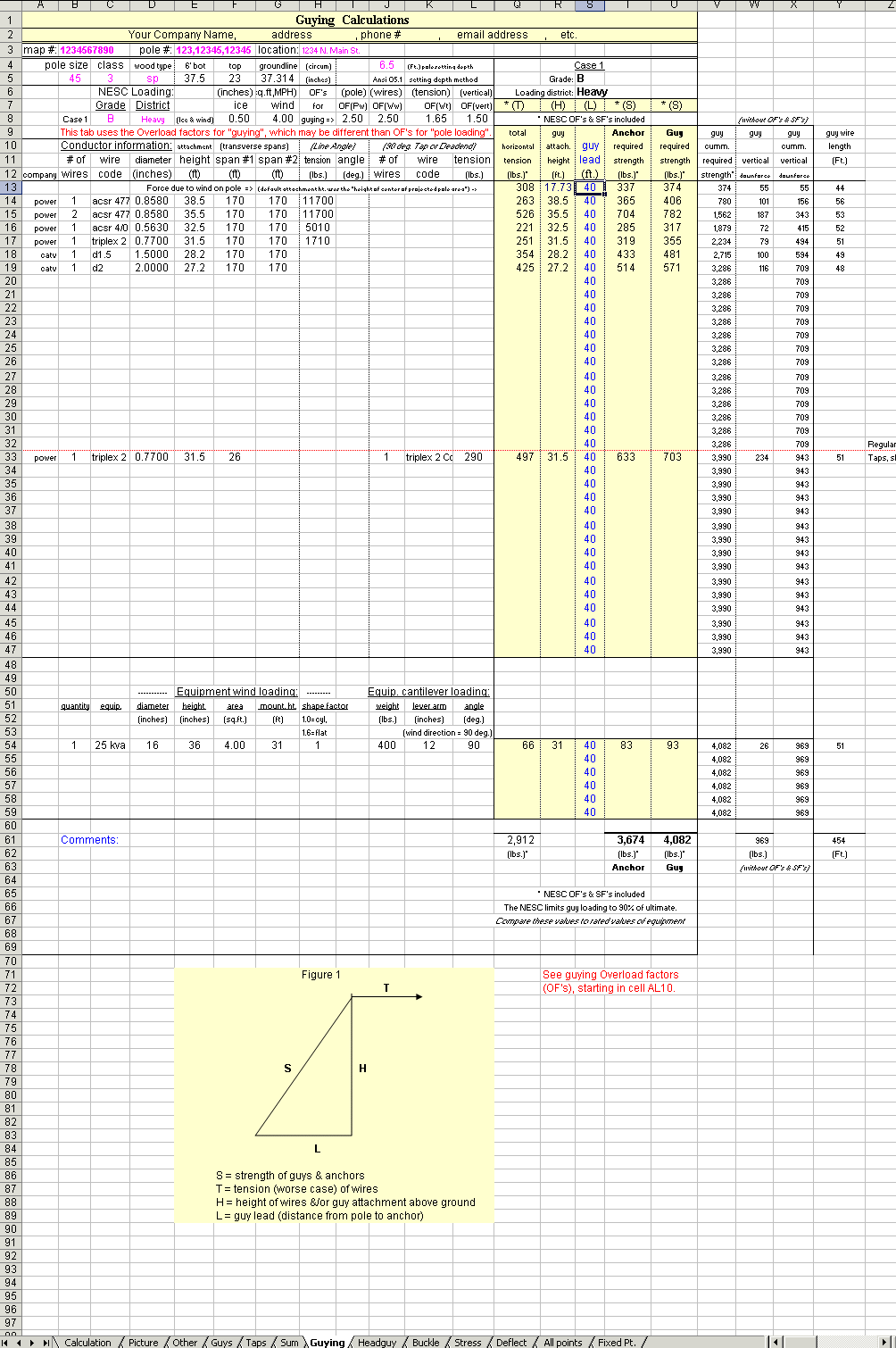

| Downguy & Headguy Calculations: |
| Calculates required guys and anchors using NESC or GO95 overload factors, pole data, wire size, tension, span lengths, deadend tensions, line angles, transverse wind & ice loading. (NEW =>) A new headguy tab calculates required headguys between two poles, and downguys on the second pole, all at the same time. An alternate method of modeling guy wires is also available. The guys tab allows a user to enter existing or proposed guy information, to model their effect on pole loading (transverse & vertical). The results of the forces & moments due to these guy wires are transferred to the calculation, sum, and buckle tabs. The Guying program requires the Transverse & Vertical Pole Loading program. It is not available as a stand-alone program. |
